image of Belden 7814A (008A1000) Cat 6 24 AWG Solid UTP Cable 305m/Box - Grey with Spec and Price in BDT

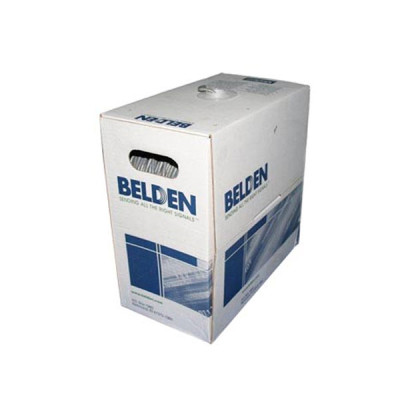

Belden 7814A (008A1000) Cat 6 24 AWG Solid UTP Cable 305m/Box - Grey

Key Features of Belden 7814A (008A1000):
Brand : BELDEN
Part No: 7814A 008A1000
Origin: USA
Suitable Applications: Premise Horizontal Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422, 250MHz Category 6
AWG: 24

CALL FOR DETAILS: 01325065754, 01969603589
Belden 7814A (008A1000) Cat 6 24 AWG Solid UTP Cable 305m/Box - Grey
Based on 0 reviews. - Write a review
৳0.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Brand : BELDEN
attr -Key Feature 2 > Part No: 7814A 008A1000
attr -Key Feature 3 > Origin: USA
attr -Key Feature 4 > Suitable Applications: Premise Horizontal Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422, 250MHz Category 6
attr -Key Feature 5 > AWG: 24
Call Info >

CALL FOR DETAILS: 01325065754, 01969603589
Belden Cable
Brand BELDEN
Part No 7814A 008A1000
Origin USA
Suitable Applications Premise Horizontal Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422, 250MHz Category 6
AWG 24
Stranding Solid
Material (Conductor) BC - Bare Copper
No. of Pairs 4
Material (Insulation) PO - Polyolefin
Material (Outer Jacket) PVC - Polyvinyl Chloride
Nominal Diameter 5.8 mm
Diameter +/- Tolerance 0.3 mm
Max. Conductor DCR 93.8 Ohm/km
Max DCR Unbalanced Between Pairs [%] 56 pF/m
Operating Voltage 72 V DC
Nominal Characteristic Impedance 100 Ohm
Frequency [MHz] 538 ns/100m
Max. Delay 538 ns/100m
Max. Delay Skew 45 ns/100m
Nominal Velocity of Propagation (VP) 70%
Operating Temperature Range -20°C to +75°C
Bulk Cable Weight 36.0 kg/km
Max. Pull Tension 110 N
Min. Bend Radius During Installation 23.2 mm
ISO/IEC Compliance ISO/IEC 11801
