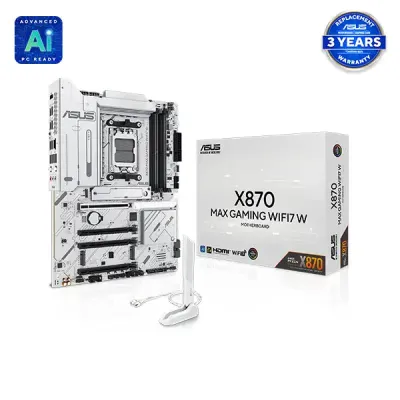

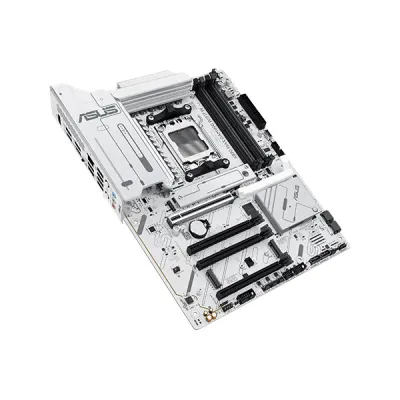

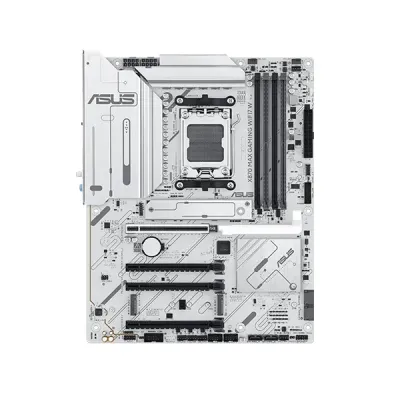

ASUS X870 MAX GAMING WIFI7 W AM5 ATX Gaming Motherboard
ASUS X870 MAX GAMING WIFI7 W AM5 ATX Gaming Motherboard
ASUS X870 MAX GAMING WIFI7 W AM5 ATX Gaming Motherboard
ASUS X870 MAX GAMING WIFI7 W AM5 ATX Gaming Motherboard

ASUS X870 MAX GAMING WIFI7 W AM5 ATX Gaming Motherboard

Key Features of X870 MAX GAMING WIFI7 W:
Chipset: AMD X870 Chipset for 9000 Series Processors
Socket: AMD Socket AM5
Memory: 4 x DIMM slots, max. 256GB, DDR5
Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Features: Advanced AI PC-ready, PCIe 5.0 s​​​​lots, WiFi 7, EZ PC DIY, Aura Sync, Asus Fan Xpert 4, ASUS AI Advisor
ASUS X870 MAX GAMING WIFI7 W AM5 ATX Gaming Motherboard
Based on 0 reviews. - Write a review
৳43,500.00
Add to Cart
Buy Now
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Chipset: AMD X870 Chipset for 9000 Series Processors
attr -Key Feature 2 > Socket: AMD Socket AM5
attr -Key Feature 3 > Memory: 4 x DIMM slots, max. 256GB, DDR5
attr -Key Feature 4 > Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
attr -Key Feature 5 > Features: Advanced AI PC-ready, PCIe 5.0 s​​​​lots, WiFi 7, EZ PC DIY, Aura Sync, Asus Fan Xpert 4, ASUS AI Advisor
Motherboard
Model X870 MAX GAMING WIFI7 W
CPU AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

* Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset AMD X870 Chipset
Memory 4 x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors
ECC and Non-ECC, Un-buffered DIMM*
Dual-channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics 1 x HDMI port**
2 x USB4 (40Gbps) ports support USB Type-C display outputs***

* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.
*** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

AMD X870 Chipset
2 x PCIe 4.0 x16 slots (support x1 mode)
1 x PCIe 3.0 x16 slot (supports x1 mode)***

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
*** PCIEX16(G3) slot shares bandwidth with SATA6G_3 and SATA6G_4 ports. Both SATA ports will be disabled when PCIEX16(G3) slot is running. You can enter the BIOS to adjust the default Settings as required.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**

AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

* 2 x USB4 (40Gbps) ports share bandwidth with M.2_2 slot. The M.2_2 slot will be disabled when either of the two USB4 (40Gbps) ports is running. You can enter the BIOS to adjust the default Settings as required.
* The PCIEX16(G3) slot shares bandwidth with the SATA6G_3 and SATA6G_4 ports. Both SATA ports will be disabled when the PCIEX16(G3) slot is running. You can enter the BIOS to adjust the default Settings as required.
** Specifications vary by CPU types.
Ethernet 1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth v5.4***

* Wi-Fi features may vary depending on the operating system.
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB Rear USB (Total 10 ports)
2 x USB4 (40Gbps) ports (2 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C power delivery output: max. 5V/3A
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

Audio Features:
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

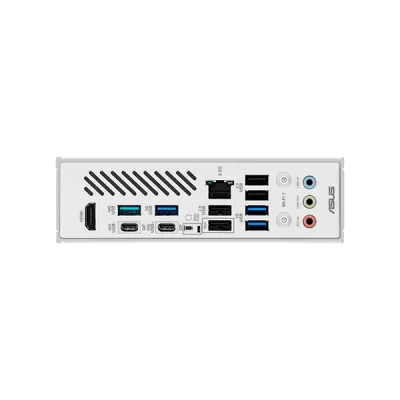

Back Panel I/O Ports 2 x USB4 (40Gbps) ports (2 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
Internal I/O Connectors Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers

Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors

Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
Special Features ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O

ASUS Q-Design
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot

ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design

ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot
Aura Sync - Addressable RGB Gen 2 headers
Software Features ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 with AI Cooling II

ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
TurboV Core
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)

UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cables

Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x M.2 rubber package
1 x Screw package for M.2 SSD

Documentation
1 x Quick start guide
Operating System Windows 11
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Warranty 3 Years Replacement Warranty *(Terms and Conditions Applied)
Description:

ASUS X870 MAX GAMING WIFI7 W AM5 ATX Gaming Motherboard Price in Bangladesh

ASUS X870 MAX GAMING WIFI7 W AM5 ATX Gaming Motherboard

ASUS X870 MAX GAMING WIFI7 W AM5 ATX Gaming Motherboard is specifically built for AMD Ryzen 9000, 8000, and 7000 Series processors. It supports the AM5 socket and 12+2+1 power stages (80A) with huge VRM heatsinks for efficient and stable power delivery. It has DDR5 memory support in addition to ASUS AEMP and EXPO for increased performance even using low-end RAM. It has one PCIe 5.0 x16 slot, two PCIe 4.0 x16 (x1 mode), and one PCIe 3.0 x16 (x1 mode) slot. There are three M.2 storage slots: a single PCIe 5.0 x4 and two PCIe 4.0 x4, which lead to quicker loading times and quicker data access. WiFi 7 built in and Realtek 2.5 Gb Ethernet enable speedy networking with minimal delay.

ASUS AI Advisor and AI Cooling II help manage system settings and fan control. Fan Xpert 4 software and hybrid fan headers offer intelligent and quiet cooling based on CPU temperature. The board also features a passive chipset heatsink and M.2 cooling flexibility. Users benefit from fast connectivity for devices and external monitors via USB 40 Gbps Type-C, USB 20 Gbps Type-C, and PCIe 5.0. ASUS Q-Antenna, PCIe Slot Q-Release, Q-LED Core, and pre-mounted I/O shield are included to simplify the build process.

ASUS Armoury Crate software controls RGB lighting through Aura Sync and drive,r and update management. UEFI BIOS is supported by the board for basic and advanced settings. Addressable Gen 2 RGB headers support synced lighting based on device LED count. ASUS X870 MAX GAMING WIFI7 W is a suitable choice for gaming, content creation, and AI work with advanced connectivity, strong cooling, and future-proof features.

Buy ASUS X870 MAX GAMING WIFI7 W AM5 ATX Gaming Motherboard in Bangladesh

You can buy your desired ASUS X870 MAX GAMING WIFI7 W AM5 ATX Gaming Motherboard at Global Brand PLC. We are the authorized distributor of Asus in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
