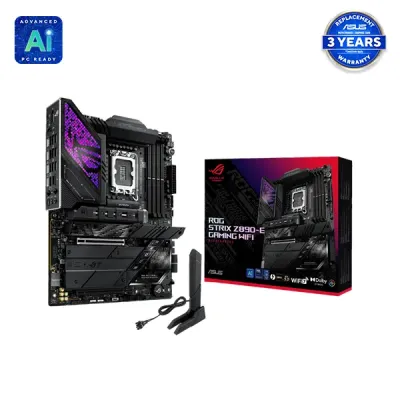

ASUS ROG STRIX Z890-E GAMING WIFI Intel LGA1851 ATX Gaming Motherboard
ASUS ROG STRIX Z890-E GAMING WIFI Intel LGA1851 ATX Gaming Motherboard
ASUS ROG STRIX Z890-E GAMING WIFI Intel LGA1851 ATX Gaming Motherboard

ASUS ROG STRIX Z890-E GAMING WIFI Intel LGA1851 ATX Gaming Motherboard

Key Features of ROG STRIX Z890-E GAMING WIFI:
Chipset: Intel Z890 Chipset for Core Ultra Processors (Series 2)
Socket: Intel Socket LGA1851
Memory: 4 x DIMM slots, max. 256GB, DDR5
Storage: Total supports 7 x M.2 slots and 4 x SATA 6Gb/s ports
Features: Advanced AI PC-ready, PCIe 5.0 s​​​​lots, WiFi 7, EZ PC DIY, Aura Sync
ASUS ROG STRIX Z890-E GAMING WIFI Intel LGA1851 ATX Gaming Motherboard
Based on 0 reviews. - Write a review
৳77,000.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Chipset: Intel Z890 Chipset for Core Ultra Processors (Series 2)
attr -Key Feature 2 > Socket: Intel Socket LGA1851
attr -Key Feature 3 > Memory: 4 x DIMM slots, max. 256GB, DDR5
attr -Key Feature 4 > Storage: Total supports 7 x M.2 slots and 4 x SATA 6Gb/s ports
attr -Key Feature 5 > Features: Advanced AI PC-ready, PCIe 5.0 s​​​​lots, WiFi 7, EZ PC DIY, Aura Sync
Motherboard
Model ROG STRIX Z890-E GAMING WIFI
CPU Intel Socket LGA1851 for Intel Core Ultra Processors(Series 2)
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Refer to https://www.asus.com/support/download-center/ for CPU support list.
Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel Z890 Chipset
Memory 4 x DIMM slots, max. 256GB, DDR5
Support up to 8800+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
NitroPath DRAM Technology
DIMM Fit
ASUS Enhanced Memory Profile III (AEMP III)

Adjustments will be made based on the specifications of mass-produced memory products available on the market.
Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Graphics 1 x DisplayPort
1 x HDMI port
2 x Intel Thunderbolt 4 support DisplayPort and Thunderbolt video outputs

Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Supports max. 8K@60Hz as specified in DisplayPort 1.4.
Supports max. 8K@60Hz as specified in HDMI 2.1.
In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.
In DP alt mode, Only one USB Type-C port supports up to UHBR20 at a time.
VGA resolution support depends on processors' or graphic cards' resolution.
While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots Intel Core Ultra Processors(Series 2)
1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)

Intel Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)

Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage Total supports 7 x M.2 slots and 4 x SATA 6Gb/s ports
Intel Core Ultra Processors(Series 2)
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

Intel Z890 Chipset
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_7 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports

Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
M.2_3 & M.2_4 slots share bandwidth with PCIEX16(G5). When M.2_3 & M.2_4 are occupied with SSD devices, PCIEX16(G5) will run x8 only.
Ethernet 1 x Realtek 5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth v5.4
Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB Rear USB (Total 14 ports)
2 x Thunderbolt 4 (2 x USB Type-C)
9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C + 1 x USB Type-C with up to 30W PD Fast-charge)
3 x USB 5Gbps ports (3 x Type-A)

Front USB (Total 11 ports)
1 x USB 20Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports

USB Type-C power delivery output: 5V/3A
USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2A.
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback

Audio Features
- Audio Shielding
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover

The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

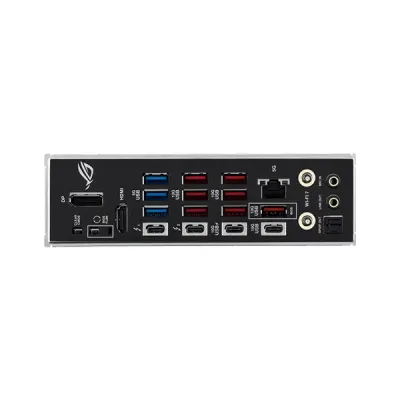

Back Panel I/O Ports 2 x Thunderbolt 4 (2 x USB Type-C)
9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C + 1 x USB Type-C with up to 30W PD Fast-charge)
3 x USB 5Gbps ports (3 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 5Gb Ethernet
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Internal I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors

Storage related
7 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 20Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports

Miscellaneous
3 x Addressable Gen2 headers
1 x Chassis Intrusion header
1 x CPU Over Voltage jumper
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
1 x Thunderbolt (USB4) header
Special Features Extreme Engine Digi+
- 5K Black Metallic Capacitors

ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Dashboard
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot

ASUS Thermal Solution
- M.2 heatsinks
- M.2 heatsink backplate
- VRM heatsink design

ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM

Aura Sync
- Addressable Gen2 headers
Software Features ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos

ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving

ASUS Driver Hub
ASUS GlideX
TurboV Core
USB Wattage Watcher
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide

ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey

NPU Boost
FlexKey
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2 22110

Miscellaneous
1 x ASUS Wi-Fi Q-Antenna
1 x Cable ties pack
1 x M.2 Q-Latch package
2 x M.2 Q-Slides
1 x ROG key chain
1 x ROG Strix stickers
7 x M.2 Rubbers
Documentation
1 x Quick start guide
Operating System Windows 11 (22H2 & later)
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Warranty 3-Year Brand Warranty (Condition applied)
Description:

ASUS ROG STRIX Z890-E GAMING WIFI Intel LGA1851 ATX Gaming Motherboard

The ASUS ROG STRIX Z890-E GAMING WIFI Intel LGA1851 ATX Gaming Motherboard is designed to deliver class-leading performance and advanced features for gamers and PC enthusiasts alike. It is designed for Intel Core Ultra Processors, Series 2, supporting up to 256GB DDR5 memory at over 9200 MT/s, powered by NitroPath DRAM Technology, DIMM FLEX, and AEMP III for optimal memory tuning. Its 16+2+2 power stages, rated up to 110A, ensure smooth and efficient power delivery. Providing ultimate connectivity, with 7 x M.2s, including support for PCIe 5.0 x4 and USB4 Type-C ports and WiFi 7 for ultra-fast wireless along with PCIe 5.0 x16 SafeSlot so users can take advantage of next-gen graphics card coupled with Realtek 5Gb Ethernet for the best networking performance.

ASUS AI technology stands for intuitive utilities that optimize the system: AI Overclocking, AI Cooling II, and AI Networking II. BIOS Q-Dashboard and UEFI BIOS make it easier to tinker with settings, and NPU Boost ups performance up to 24%. The cooling is aptly done by cooling: M.2 heatsinks, VRM heatsink arrays, and fan headers. ROG M.2 PowerBoost makes sure the performance is not compromised with the number of drives attached. Software: ASUS Armoury Crate syncs RGB lighting with Aura Sync for a unified setup look. Moreover, features like M.2 Q-Latch, Q-Antenna, and clear CMOS make the assembly and maintenance process much easier.

It also comes with support for Thunderbolt 4 and USB 20Gbps fast charging. Additionally, tools like HWiNFO, AIDA64 Extreme, and ASUS DriverHub are included to offer system monitoring and update capabilities. It also features compatibility with ASUS AIO coolers and other ROG Strix ecosystem products. With the sleek black PCB, customizable RGB, and loads of performance features, the ASUS ROG STRIX Z890-E completes the gaming and advanced PC build.

Buy ASUS ROG STRIX Z890-E GAMING WIFI Intel LGA1851 ATX Gaming Motherboard in Bangladesh

You can buy your desired ASUS ROG STRIX Z890-E GAMING WIFI Intel LGA1851 ATX Gaming Motherboard at Global Brand PLC. We are the authorized distributor of Asus in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
