ASUS ROG CROSSHAIR X870E EXTREME AM5 E-ATX Gaming Motherboard
ASUS ROG CROSSHAIR X870E EXTREME AM5 E-ATX Gaming Motherboard
ASUS ROG CROSSHAIR X870E EXTREME AM5 E-ATX Gaming Motherboard
ASUS ROG CROSSHAIR X870E EXTREME AM5 E-ATX Gaming Motherboard
ASUS ROG CROSSHAIR X870E EXTREME AM5 E-ATX Gaming Motherboard

ASUS ROG CROSSHAIR X870E EXTREME AM5 E-ATX Gaming Motherboard

Key Features of ROG CROSSHAIR X870E EXTREME:
Chipset: AMD X870E Chipset for AMD Ryzen 9000 & 8000 & 7000 Series
Socket: AMD Socket AM5
Memory: 4 x DIMM slots, max. 256GB, DDR5
Storage: Supports 5x M.2 slots and 1x SlimSAS connector and 4x SATA 6Gb/s ports*
Features: DDR5 Memory. Extensive PCIe Gen 5, WIFI 7, USB 4, ROG Q-DIMM.2, AI Cooling II,
ASUS ROG CROSSHAIR X870E EXTREME AM5 E-ATX Gaming Motherboard
Based on 0 reviews. - Write a review
৳0.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Chipset: AMD X870E Chipset for AMD Ryzen 9000 & 8000 & 7000 Series
attr -Key Feature 2 > Socket: AMD Socket AM5
attr -Key Feature 3 > Memory: 4 x DIMM slots, max. 256GB, DDR5
attr -Key Feature 4 > Storage: Supports 5x M.2 slots and 1x SlimSAS connector and 4x SATA 6Gb/s ports*
attr -Key Feature 5 > Features: DDR5 Memory. Extensive PCIe Gen 5, WIFI 7, USB 4, ROG Q-DIMM.2, AI Cooling II,
Motherboard
CPU AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset AMD X870E
Memory 4 x DIMM slots, max. 256GB, DDR5
Supports up to
8200+MT/s(OC) with Ryzen 9000 Series Processors,
9000+MT/s(OC) with Ryzen 8000 Series Processors,
8000+MT/s(OC) with Ryzen 7000 Series Processors,

ECC and Non-ECC, Un-buffered DIMM*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
NitroPath DRAM Technology

*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.
For more information, please refer to the CPU/Memory Support list under the Support tab of the product information site or
visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics 1 x HDMITM port**
2 x USB4 (40Gbps) ports support USB Type-C display outputs***

* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a
**** VGA resolution support depends on the processors' or graphics cards' resolution.
Expansion Slots AMD Ryzen 9000 & 7000 Series Desktop Processors*
2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***)
** When you use both PCIEX16(G5)_1 and PCIEX16(G5)_2, PCIEX16(G5)_1 and PCIEX16(G5)_2 will run x8.
***When M.2_3 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run x4.
**** When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16(G5)_2 will be disabled.

AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors*
2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will be disabled)

AMD Ryzen 8500 & 8300 Series Desktop Processors*
2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 &
total bandwidth for x4, PCIEx16(G5)_2 will be disabled)

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported devices.
Storage Supports up to 5 x M.2 slots, 1 x SlimSAS connector, and 4 x SATA 6Gb/s ports*
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)*
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**

AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supported)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supported)

AMD X870E Chipset
DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
SlimSAS connector supports PCIe 4.0 x4 mode via an SFF-8654 adapter cable. The cable is purchased separately.
4 x SATA 6Gb/s ports

* When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16(G5)_2 will be disabled.
** When M.2_3 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run x4, M.2_2 will be disabled.

AMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Ethernet 1 x Realtek 5Gb Ethernet
1 x Marvell AQtion 10Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
Bluetooth v5.4***

*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions
Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available; refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulations may vary between countries.
*** The Bluetooth version may vary; please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB Rear USB (Total 12 ports)
2 x USB4 (40Gbps) ports (2 x USB Type-C)
10 x USB 10Gbps ports (8 x Type-A + 2 x USB Type-C)

Front USB (Total 10 ports)
1 x USB 20Gbps connector (supports USB Type-C with up to 60W PD/QC4+)*
1 x USB 10Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C power delivery output: max. 5V/3A
*USB Type-C power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-bit/384 kHz playback on front panel

Audio Features
- SupremeFX Shielding Technology
- ESS ES9219 QUAD DAC
- LED-illuminated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to
connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

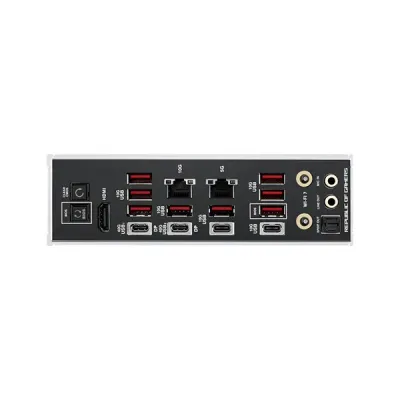

Back Panel I/O Ports 2 x USB4 (40Gbps) ports (2 x USB Type-C)
10 x USB 10Gbps ports (8 x Type-A + 2 x USB Type-C)
1 x HDMITM port
1 x Wi-Fi Module
1 x Realtek 5Gb Ethernet port
1 x Marvell AQtion 10Gb Ethernet port
2 x LED-illuminated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Internal I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
2 x 4-pin Radiator Fan headers
2 x W_PUMP+ headers
1 x VRM Heatsink Fan header

Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
1 x 8-pin PCIe Power connector

Storage related
3 x M.2 slots (Key M)
1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
1 x SlimSAS connector
4 x SATA 6Gb/s ports

USB
1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 10Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous
1 x 6-pin ARGB Gen 2 header to support 2 x
ARGB Gen 2 headers
2 x Addressable Gen 2 header
1 x Alteration PCIe mode switch
2 x BCLK button
1 x BIOS Switch
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x LN2 Mode jumper
12 x ProbeIt Measurement Points
1 x ReTry button
2 x RSVD switches
1 x RSVD header
1 x Safe Boot button
1 x Slow Mode switch
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
1 x Pause switch
Special Features Extreme OC Kit
- FlexKey button
- LN2 Mode
- ProbeIt
- ReTry button
- Safe boot button
- Start button
- Slow Mode

Extreme Engine Digi+
- 10K Black Metallic Capacitors
- MicroFine Alloy Choke

ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Connector
- Q-Dashboard
- Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])
- Q-Slot
- Q-DIMM.2

ASUS Thermal Solution
- Fan bracket
- M.2 heatsink backplate
- M.2 heatsink

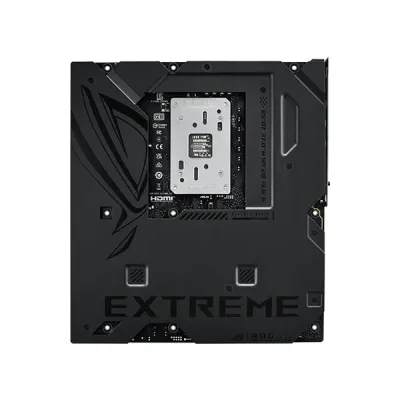

- Metal backplate
- VRM heatsink design
- 3D VC M.2 Heatsink

ASUS EZ DIY
- Backplate
- BIOS FlashBack button
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM

Aura Sync
- Addressable Gen 2 headers

Dual BIOS
Full Color 5" LCD Display
Front Panel USB 20Gbps with Quick Charge 4+

Support
- Support: up to 60W fast charging and USB
Wattage Watcher*
- Output: 5/9/15/20V max. 3A, PPS:3.3–21V
max. 3A
- Compatible with PD3.0 and PPS

* To support 60W, please install the power
cable to the 8-pin PCIe power connector, or else only 27W will be supported.
Software Features ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
- Internet Security (1-year full version)

ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (1 year full version)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
- LCD Display
ASUS AI Advisor
ASUS DriverHub
Turbo Vcore
ASUS GlideX
USB Wattage Watcher
WinRAR (40 Days Free Trial)
Adobe Creative Cloud (Free Trial)

UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
BIOS 2 x 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME

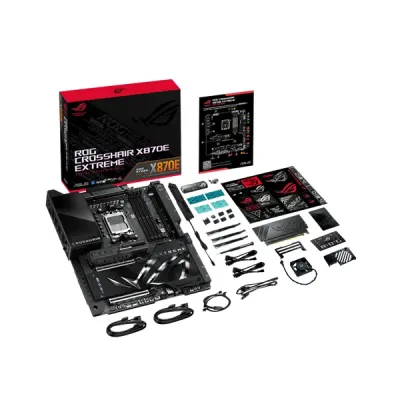

Accessories Cables
1 x 1-to-3 ARGB splitter cable
1 x 1-to-2 ARGB splitter cable
2 x 1-to-4 fan splitter cable
2 x ROG weave SATA 6G cable packages
1 x 3-in-1 Thermistor cables pack

ROG Q-DIMM.2 with Heatsink
1 x ROG DIMM.2 with heatsink
1 x M.2 pad package for ROG Q-DIMM.2
2 x Thermal pad for ROG Q-DIMM.2

Additional Cooling Kit
2 x Thermal pad for M.2 22110
1 x DDR5 Fan holder
1 x ROG Fan Kit

Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Q-connector
1 x ROG logo plate sticker
1 x ROG screwdriver
1 x ROG stickers
1 x ROG VIP card
1 x M.2 Q-Slide package
5 x M.2 backplate rubber packages
1 x ROG Bottle Opener

Installation Media
1 x USB drive with utilities and drivers

Documentation
1 x Quick start guide
Operating System Windows 11
Form Factor E-ATX Form Factor
12 inch x 10.9 inch (30.5 cm x 27.7 cm)
Warranty 3 Years Replacement Warranty *(Terms and Conditions Applied)
Description:

ASUS ROG CROSSHAIR X870E EXTREME AM5 E-ATX Gaming Motherboard Price in Bangladesh

ASUS ROG CROSSHAIR X870E EXTREME AM5 E-ATX Gaming Motherboard

ASUS ROG CROSSHAIR X870E EXTREME AM5 E-ATX Gaming Motherboard supports AMD Ryzen 9000, 8000, and 7000 Series processors for ultimate performance and next-generation capabilities for gaming and content creation. It offers DDR5 memory support of up to 256GB with NitroPath DRAM Technology, AEMP, and overclocking speeds of more than 8600+ MT/s. The motherboard offers 20+2+2 power stages, dual ProCool II connectors, and extreme cooling components like AI Cooling II and multiple temperature sensors.

It is also provided with PCIe 5.0 featuring 2 x PCIe 5.0 x16 slots, 5 M.2 slots (3 PCIe 5.0, 2 PCIe 4.0 via Q-DIMM.2 card), and USB4 connectivity through dual Type-C ports, in addition to front panel USB 20Gbps and 10Gbps connectors. Networking features include WiFi 7, 10Gb Ethernet, and 5Gb Ethernet. AI technology includes AI Overclocking, AI Networking II, AI Cache Boost to boost local LLM performance, and ASUS AI Advisor to make feature discovery easy. For overclocking control, it offers Dynamic OC Switcher, Core Flex, Asynchronous Clock, and PBO Enhancement. Gaming features include ROG SupremeFX audio with Dolby Atmos, high-speed networking, and several Q-Design tools for easy PC building, including M.2 Q-Release, PCIe Slot Q-Release Slim, and Q-LED indicators.

The motherboard includes a full-color 5-inch LCD to display hardware information or customized graphics. BIOS Q-Dashboard provides a clear-to-see hardware summary, and ASUS DriverHub ensures drivers are current. Designed with quality construction, it is designed to support next-generation graphics, high-speed storage, and extreme multitasking, and has eco-friendly packaging with post-consumer recycled material. The ASUS ROG CROSSHAIR X870E EXTREME is ready for high-level gaming, professional workloads, and future hardware upgrades.

Buy ASUS ROG CROSSHAIR X870E EXTREME AM5 E-ATX Gaming Motherboard in Bangladesh

You can buy your desired ASUS ROG CROSSHAIR X870E EXTREME AM5 E-ATX Gaming Motherboard at Global Brand PLC. We are the authorized distributor of Asus in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.

Reviews

Write a review

Please login or register to review
Tags: Asus ROG CROSSHAIR X870E EXTREME specification , Asus ROG CROSSHAIR X870E EXTREME overview , Asus ROG CROSSHAIR X870E EXTREME price in BDT , buy online Asus ROG CROSSHAIR X870E EXTREME , Asus brand products
