ASUS B850M MAX GAMING WIFI AMD Ryzen AM5 mATX Gaming Motherboard
ASUS B850M MAX GAMING WIFI AMD Ryzen AM5 mATX Gaming Motherboard
ASUS B850M MAX GAMING WIFI AMD Ryzen AM5 mATX Gaming Motherboard
ASUS B850M MAX GAMING WIFI AMD Ryzen AM5 mATX Gaming Motherboard

ASUS B850M MAX GAMING WIFI AMD Ryzen AM5 mATX Gaming Motherboard

Key Features of B850M MAX GAMING WIFI:
Chipset: AMD B850 Chipset for Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Socket: AMD Socket AM5
Memory: 4 x DIMM slots, max. 256GB, DDR5
Storage: Total Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Features: WIFI 6, DIY-Friendly Design, ASUS AI Solutions, AEMP, VRM HEATSINK ARRAY, EZ PC DIY
ASUS B850M MAX GAMING WIFI AMD Ryzen AM5 mATX Gaming Motherboard
Based on 0 reviews. - Write a review
৳29,200.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Chipset: AMD B850 Chipset for Ryzen 9000 & 8000 & 7000 Series Desktop Processors
attr -Key Feature 2 > Socket: AMD Socket AM5
attr -Key Feature 3 > Memory: 4 x DIMM slots, max. 256GB, DDR5
attr -Key Feature 4 > Storage: Total Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
attr -Key Feature 5 > Features: WIFI 6, DIY-Friendly Design, ASUS AI Solutions, AEMP, VRM HEATSINK ARRAY, EZ PC DIY
Motherboard
Model B850M MAX GAMING WIFI
CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*

* Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset AMD B850 Chipset
Memory 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*

Dual-channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics 1 x DisplayPort**
1 x HDMI port***

* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
3 x PCIe 4.0 x16 slot (support x1 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
3 x PCIe 4.0 x16 slot (support x1 mode)

* Please check the PCIe bifurcation table on the support site
(https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
- To ensure compatibility of the device installed, please refer to
https://www.asus.com/support/download-center/ for the list of supported
Storage Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*

AMD B850 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports

* Specifications vary by CPU types.
AMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Ethernet 1 x Realtek 1Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth Wi-Fi 6
1x1 Wi-Fi 6 (802.11ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.4*

* The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB Rear USB (Total 9 ports)
2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C)
2 x USB 5Gbps ports (2 x Type-A)
5 x USB 2.0 ports (5 x Type-A)

Front USB (Total 9 ports)
1 x USB 5 Gbps connector (supports USB Type-C)
2 x USB 5Gbps header support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

* USB Type-C power delivery output: max. 5V/3A
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

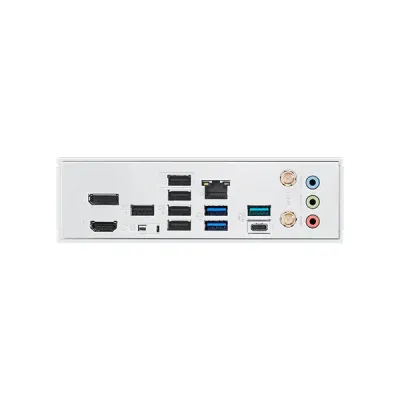

Back Panel I/O Ports 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C)
2 x USB 5Gbps ports (2 x Type-A)
5 x USB 2.0 ports (5 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
Internal I/O Connectors Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers

Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connectors
1 x 4-pin +12V CPU Power connectors

Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 5Gbps connector (supports USB Type-C)
2 x USB 5Gbps header support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
Special Features ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O

ASUS Q-Design
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot

ASUS Thermal Solution
- VRM heatsink design

ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Pre-mounted I/O shield
- SafeSlot

Aura Sync
- Addressable RGB Gen 2 headers
Software Features ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
ASUS AI Advisor
ASUS Driver Hub
ASUS GlideX
TurboV Core
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)

UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cables

Miscellaneous
1 x ASUS Wi-Fi moving antenna
2 x Screw packages for M.2 SSD

Documentation
1 x Quick start guide
Operating System Windows 11, Windows 10 64-bit
Form Factor mATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Warranty 3-Year Brand Warranty (Condition applied)
Description:

ASUS B850M MAX GAMING WIFI AMD Ryzen AM5 mATX Gaming Motherboard Price in Bangladesh

ASUS B850M MAX GAMING WIFI AMD Ryzen AM5 mATX Gaming Motherboard

ASUS B850M MAX GAMING WIFI AMD Ryzen AM5 mATX Gaming Motherboard is created to support AMD Ryzen 9000 series CPUs with the AM5 socket type. The motherboard features an 8+2+1 phase digital power design for reliable performance and comes with DDR5 memory support, four DIMM slots, and improved tuning using ASUS Enhanced Memory Profile (AEMP) and AMD EXPO. This board features a single PCIe 5.0 x16 slot and three M.2 slots, with one of the M.2 slots supporting up to PCIe 5.0 x4 speeds of 128 Gbps. The other two M.2 slots support PCIe 4.0. It also supports WiFi 6 and USB types like USB 10 Gbps Type-A and front-panel USB 5 Gbps Type-C, enabling users with rapid data transfer and outstanding wireless performance.

VRM heatsink, passive chipset heatsink, and multiple fan headers are responsible for cooling. ASUS Fan Xpert 2+ software allows controlling fan speed or silent mode for light loads. AIO pump and multiple temperature sensors support, and onboard heat-sensing hardware can be found on the board for better thermal monitoring. It offers useful software like AI Advisor, ASUS DriverHub, GlideX for screen sharing, and Armoury Crate to control RGB lighting through Aura Sync. Three addressable Gen 2 RGB headers are available to customize lighting effects.

The B850M MAX GAMING WIFI is designed for easy PC building. It comes pre-installed with an I/O shield, BIOS FlashBack, SafeSlot, and Q-LED Core. With six layers of PCB and Digi+ VRM control, it gives stability and strong overclocking capacity. This board is CEC Tier II ready as well and comes with USB Type-C ports and PCIe 5.0 slots to support graphics and storage. This board is suited for gamers, PC enthusiasts, and individuals needing a mATX board with newer technologies.

Buy ASUS B850M MAX GAMING WIFI AMD Ryzen AM5 mATX Gaming Motherboard in Bangladesh

You can buy your desired ASUS B850M MAX GAMING WIFI AMD Ryzen AM5 mATX Gaming Motherboard at Global Brand PLC. We are the authorized distributor of Asus in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
