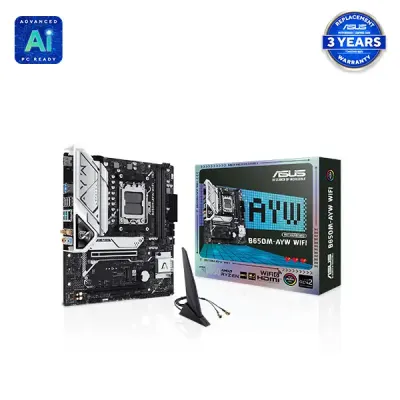

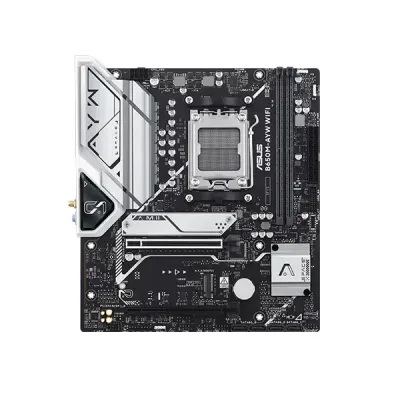

ASUS B650M-AYW WIFI AMD Ryzen AM5 Micro-ATX Motherboard

ASUS B650M-AYW WIFI AMD Ryzen AM5 Micro-ATX Motherboard

Key Features of B650M-AYW WIFI:

Chipset: AMD B650 Chipset
Socket: AMD Socket AM5
Memory: 2 x DIMM slots, max. 96GB, DDR5
Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Features: Advanced AI PC-ready, PCIe 5.0 slots, WiFi 6, Two-Way AI Noise Cancelation

Based on 0 reviews. - Write a review

৳19,700.00

Add to Cart

Buy Now

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Chipset: AMD B650 Chipset
attr -Key Feature 2 >	Socket: AMD Socket AM5
attr -Key Feature 3 >	Memory: 2 x DIMM slots, max. 96GB, DDR5
attr -Key Feature 4 >	Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
attr -Key Feature 5 >	Features: Advanced AI PC-ready, PCIe 5.0 slots, WiFi 6, Two-Way AI Noise Cancelation
Motherboard
Model	B650M-AYW WIFI
CPU	AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset	AMD B650 Chipset
Memory	2 x DIMM slots, max. 96GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Graphics	1 x HDMI port** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** Specifications vary by CPU types. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)** AMD B650 Chipset 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. ** Specifications vary by CPU types.
Ethernet	1 x Realtek 2.5Gb Ethernet
USB	Rear USB (Total 8 ports) 2 x USB 10Gbps ports (2 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

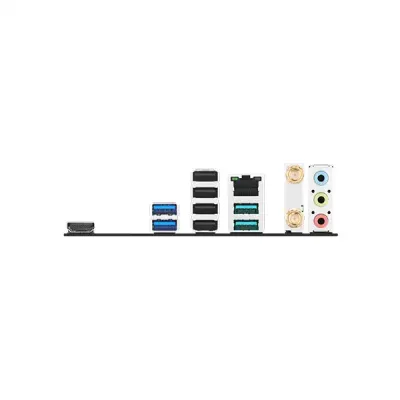

Back Panel I/O Ports	2 x USB 10Gbps ports (2 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks
Internal I/O Connectors	Fan and Cooling-related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x 10-1 pin System Panel header
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design Aura Sync - Addressable Gen 2 headers
Software Features	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE

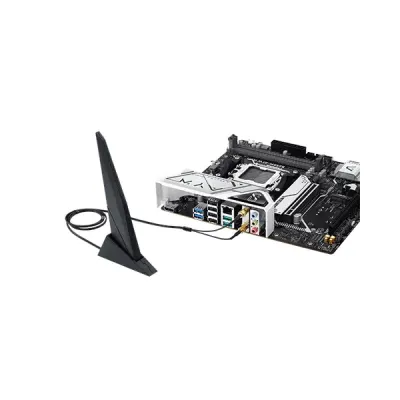

Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x I/O Shield 1 x M.2 Rubber Package 1 x Screw Package for M.2 SSD Documentation 1 x Quick start guide
Operating System	Windows 11, Windows 10 64-bit
Form Factor	micro-ATX Form Factor 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )
Warranty	3 Years Replacement Warranty *(Terms and Conditions Applied)

Description:

ASUS B650M-AYW WIFI AMD Ryzen AM5 Micro-ATX Motherboard

The ASUS B650M-AYW WIFI AMD Ryzen AM5 Micro-ATX Motherboard presents advanced performance and connectivity for AMD Ryzen desktop processors with its AM5 socket, which allows DDR5 memory support. In this way, one can optimize speed and efficiency in demanding applications. The board also features a PCIe 5.0 M.2 slot, enabling fast storage and data access. Connectivity is ensured through Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 10Gbps, and a front USB 5Gbps Type-C for the most fluid and rapid data transfer. Additional USB 2.0 ports and HDMI support provide flexibility about hookups for external devices and display options. The motherboard features a design with two DIMM DDR5 slots and includes support for AMD EXPO profiles to overclock the memory, thus enabling users to fine-tune performance.

Onboard VRM and M.2 heatsinks, a PCH heatsink, and hybrid fan headers maintain cooling. ASUS Fan Xpert 2+ gives way to cooling management for keeping systems stable under intense workloads. Power Saving allows users to adjust power settings for energy efficiency and quieter operation. Customizing features include the following: Aura Sync RGB Lighting along with a Gen 2 addressable header and an RGB header for providing a symmetric lighting effect, while its Audio contains Audio shielding, dedicated PCB layers for L and R channels, and Premium capacitors.

Key Features of ASUS B650M-AYW WIFI AMD Ryzen AM5 Micro-ATX Motherboard:

AI computing, with the power and connectivity needed for demanding AI applications
AM5 Socket for AMD Ryzen Desktop Processors
Ultrafast Connectivity
ASUS OptiMem II: Careful routing of traces and vias
Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink
Aura Sync RGB Lighting

It has integrated intuitive control to provide support through ASUS OptiMem II, hence promoting memory signal integrity for a strong, stable overclocking experience. In this manner, Two-Way AI Noise Cancellation improves voice clarity while making calls or streaming. ASUS B650M-AYW WIFI uses high-bandwidth connectivity, smart cooling, seriously smart memory options, and a hassle-free user experience with reliable performance during gaming, creating content, and also performing general tasks.

Buy ASUS B650M-AYW WIFI AMD Ryzen AM5 Micro-ATX Motherboard in Bangladesh

You can buy your desired ASUS B650M-AYW WIFI AMD Ryzen AM5 Micro-ATX Motherboard at Global Brand PLC. We are the authorized distributor of Asus in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
